- Compact design for flexible installation.
- Supports auto and manual adjustment for gain, exposure control, white balance, LUT, etc.
- Adopts image interpolation algorithm for color camera to have better color correction.
- Power supply and data transmission via USB3.0 interface.
- Compatible with USB3 Vision Protocol, GenlCam standard, and the third-party software based on these protocol and standard.
MV-CB120-10UC-B
HIKROBOT Board Level Camera CB Series
HIKROBOT Board Level Camera CB Series
The CB series board-level products is designed with a single board or multi-board stacked, which supports GigE or U3V protocol. It is applicable to the industrial, embedded, 3D, medical and other scenarios with more stringent space requirements.
Ultra-small size, flexible for application – with a compact size, the board-level camera series is easier to be integrated into end users’ product structures.

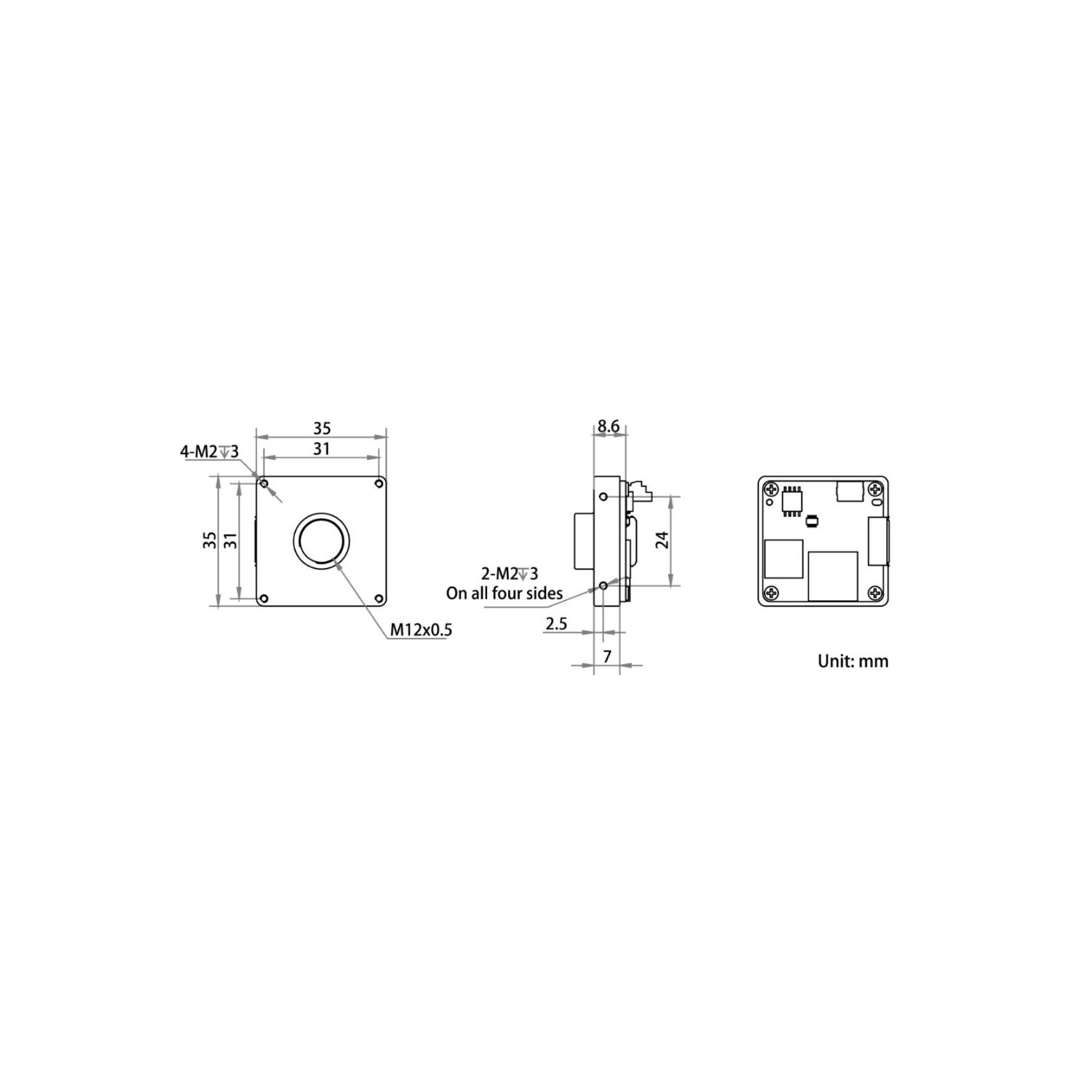

The board-level camera can support a variety of lens interface options, bare board (B), C interface (C) and M12 interface (S) to fulfill various requirements.
Product Downloads:
| Model | Product Model | MV-CB120-10UC-B |
| Type | 12MP Board Level Camera, USB3,MX226,Color,Bare Board | |
| Performance | Sensor type | CMOS, rolling shutter |
| Sensor model | IMX226 | |
| Pixel size | 1.85 µm × 1.85 µm | |
| Sensor size | 1/1.7″ | |
| Resolution | 4032 × 3036 | |
| Max. frame rate | 21 fps @4032 × 3036 | |
| Dynamic range | 70.5 dB | |
| SNR | 40.5 dB | |
| Gain | 0 dB to 20 dB | |
| Exposure time | 23 μs to 2 sec | |
| Exposure mode | Supports Off/ Once/ Continuous exposure mode, and Global Reset. | |
| Mono/color | Color | |
| Pixel format | Mono8/10/12, Bayer RG 8/10/10p/12/12pYUV 422 Packed, YUV422_YUYV_Packed, RGB 8 | |
| Binning | Not support | |
| Decimation | Not support | |
| Reverse image | Supports horizontal and vertical reverse image output | |
| Electrical feature | Data interface | USB3.0 |
| Digital I/O | Bi-directional non-isolated I/O x 2 (Line 1, Line 2) | |
| Power supply | USB3.0 power supply | |
| Power consumption | Typ. 2.45 W@5 VDC | |
| Mechanical | Lens mount | Single board camera: none |

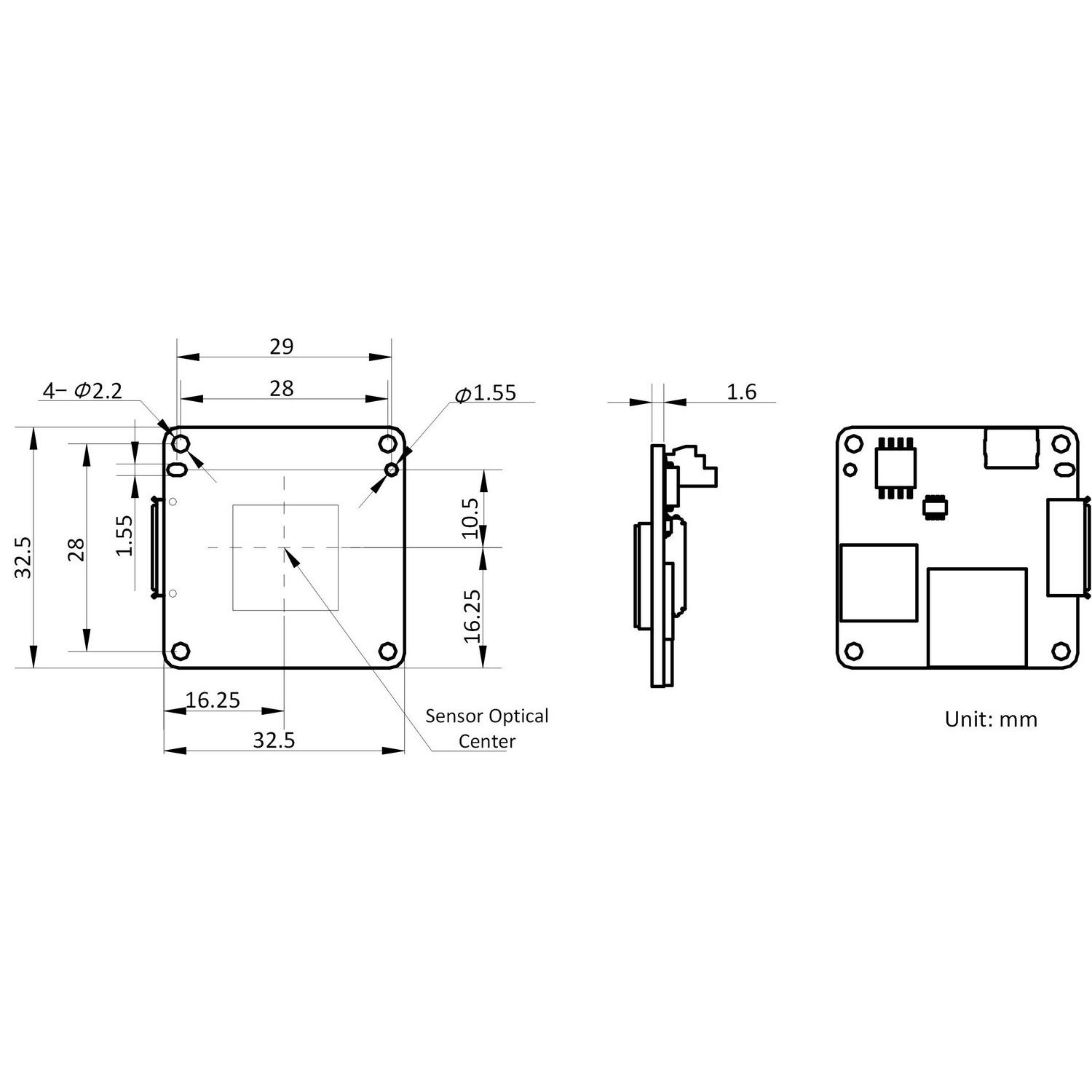

| Dimension | Single board camera: 32.5 mm × 32.5 mm × 1.6 mm (1.3″ × 1.3″ × 0.1″) | |
| Weight | Single board camera: Approx. 10 g (0.02 lb.) | |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) | |
| Humidity | 20% to 80% RH, non-condensing | |
| General | Client software | MVS or third-party software with USB3 Vision Protocol |
| Operating system | 32/64-bit Windows XP/7/10, 32/64-bit Linux | |
| Compatibility | USB3 Vision, GenICam | |
| Certification | CE, FCC, RoHS, KC |
