- Supports auto or manual adjustment of gain and exposure time, and manual adjustment of LUT and Gamma correction.
- Supports FFC correction function.
- Supports 16-bit ADC output with high acquisition accuracy and wide dynamic range.
- Provides camera with fan or TEC to meet different working temperature requirements.
- Supports configuration modes of Base, Medium, Full and 80-bit via the Camera Link interface.
- Compatible with Camera Link V2.0 Protocol, GenlCam Standard, and the frame grabber software meeting with GenICam Protocol.

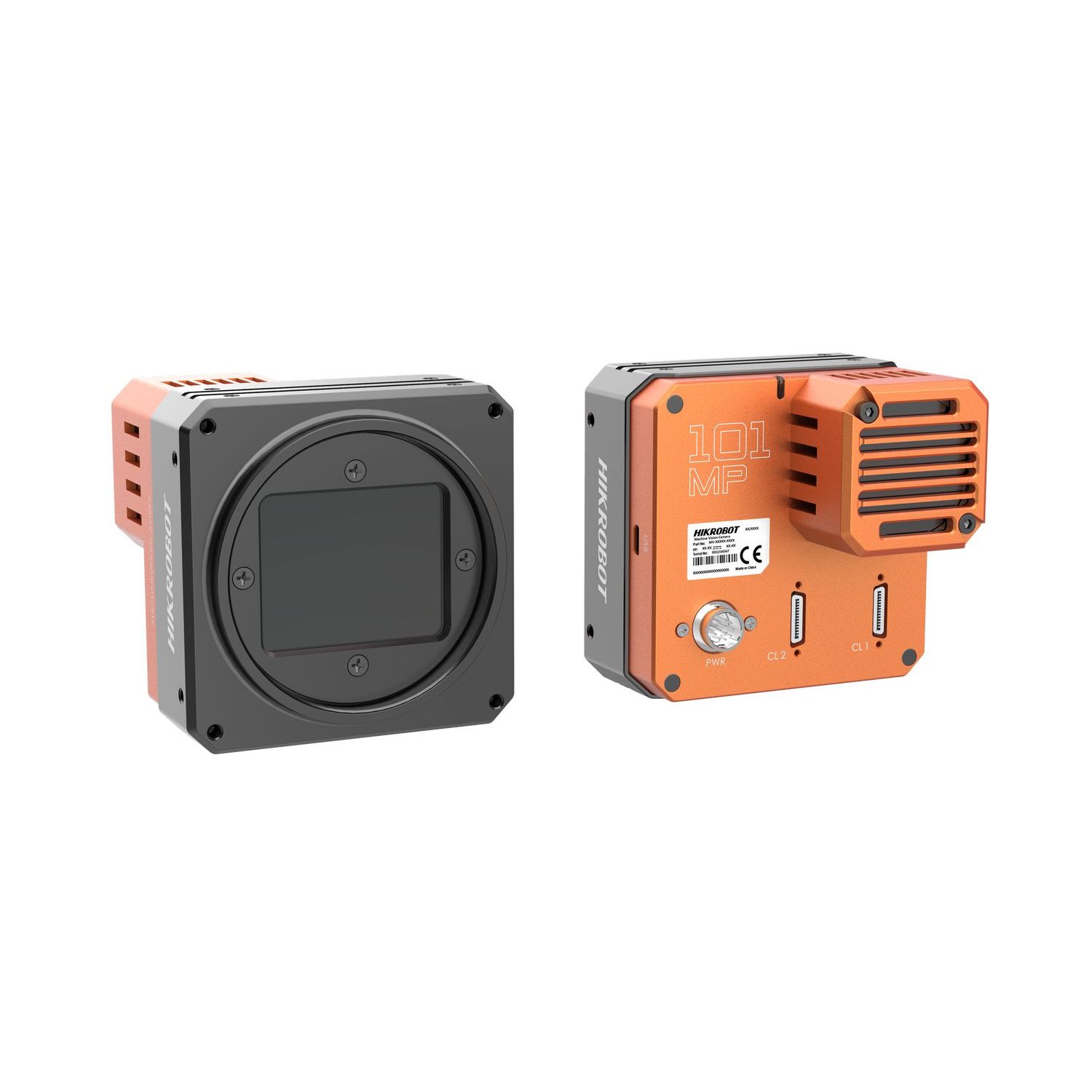

MV-CH1010-10CM-M72-NF
HIKROBOT Area Scan Camera CH Series
HIKROBOT Area Scan Camera CH Series
High-end product series designed for high-precision application and development in Panel, electronic semiconductor, new energy and other industries. which covers data interfaces of GigE, USB 3.0, 10 GigE, Camera Link, CoaXPress.
Covering 5M-151M pixels that can meet high resolution and high frame rate requirements. Equipped with fan or TEC cooling models to meet various imaging requirements. Years of accumulation of 100-level purification processes have also given the product a world-class delivery advantage.
Built-in ISP algorithms, including bright field correction, dark field correction, shadow correction, dead pixel/bad line correction, and pixel-by-pixel correction, to ensure consistent and stable image output.
Product Downloads:
| Model | Product Model | MV-CH1010-10CM-M72-NF |
| Type | 101MP Area Scan Camera, Camera Link, IMX461, Mono, M72-mount, with fan | |
| Performance | Sensor type | CMOS, rolling shutter |
| Sensor model | IMX461 | |
| Pixel size | 3.76 μm × 3.76 μm | |
| Sensor size | 55 mm | |
| Resolution | 11648 × 8740 | |
| Max. frame rate | 8.1 fps @11648 × 8740 | |
| Configuration mode | Base, Medium, Full, 80-bit | |
| Tap geometry | 2X_1Y, 4X_1Y, 8X_1Y, 10X_1Y | |
| Tap number | 2 Taps, 4 Taps, 8 Taps, 10 Taps | |
| Pixel clock | 40 MHz, 60 MHz, 70 MHz, 85 MHz | |
| Dynamic range | 78 dB | |
| SNR | 45 dB | |
| Gain | 0 dB to 36 dB | |
| Exposure time | 14 μs to 10 sec | |
| Exposure mode | Off/Once/Continuous exposure mode, supports Global Reset | |
| Mono/color | Mono | |
| Pixel format | ADC 12-bit mode: Mono 8/10/12; ADC 16-bit mode: Mono 8/10/12/16 | |
| Binning | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 | |
| Decimation | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 | |
| Reverse image | Supports horizontal reverse image output | |
| Electrical feature | Data interface | Camera Link |
| Digital I/O | 12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1.Camera Link interface provides I/O (CC1/CC2/CC3/CC4) | |
| Power supply | 12 VDC to 24 VDC | |
| Power consumption | Typ. 14 W@24 VDC | |
| Mechanical | Lens mount | M72*0.75, flange back focal length 19.55 mm (0.8″) |

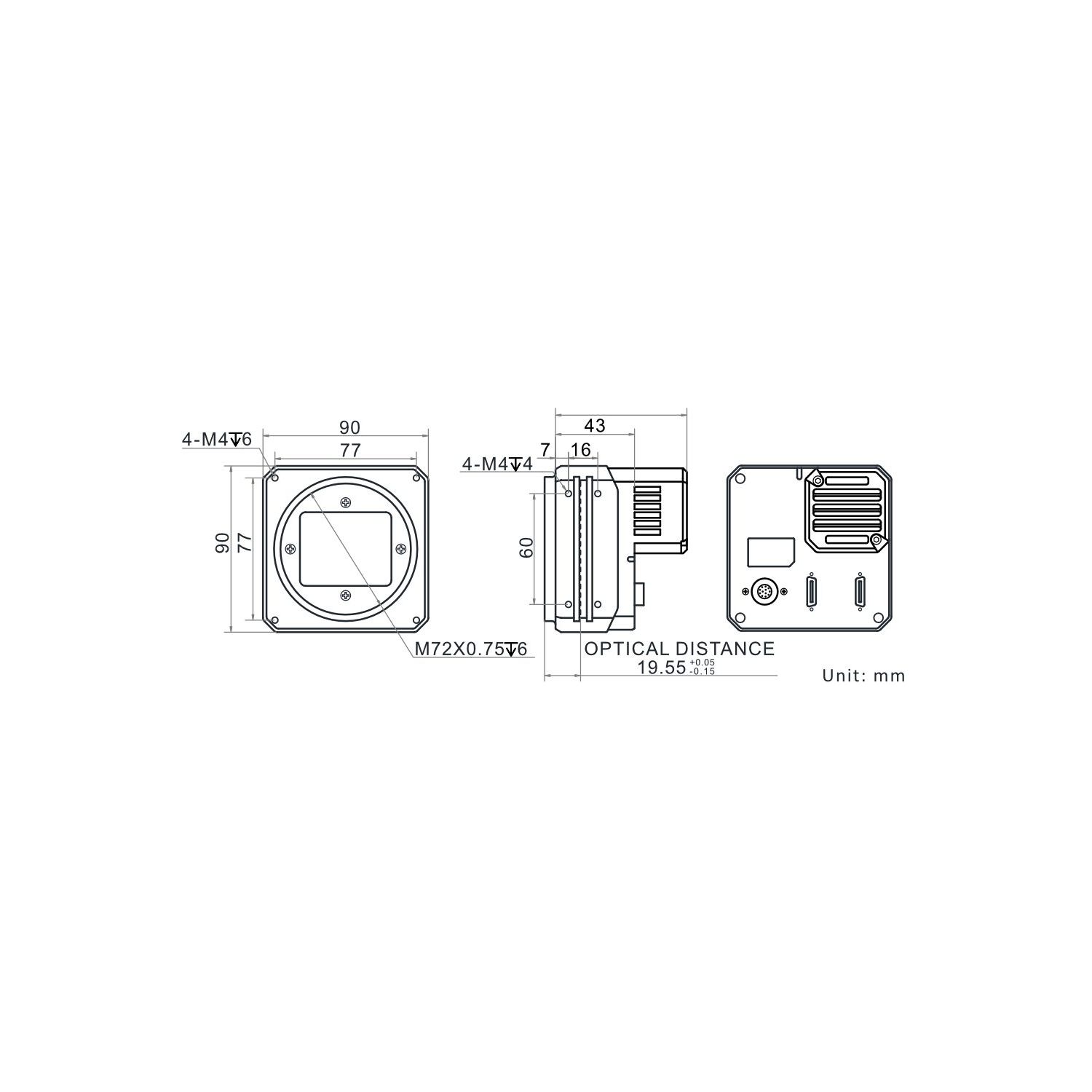

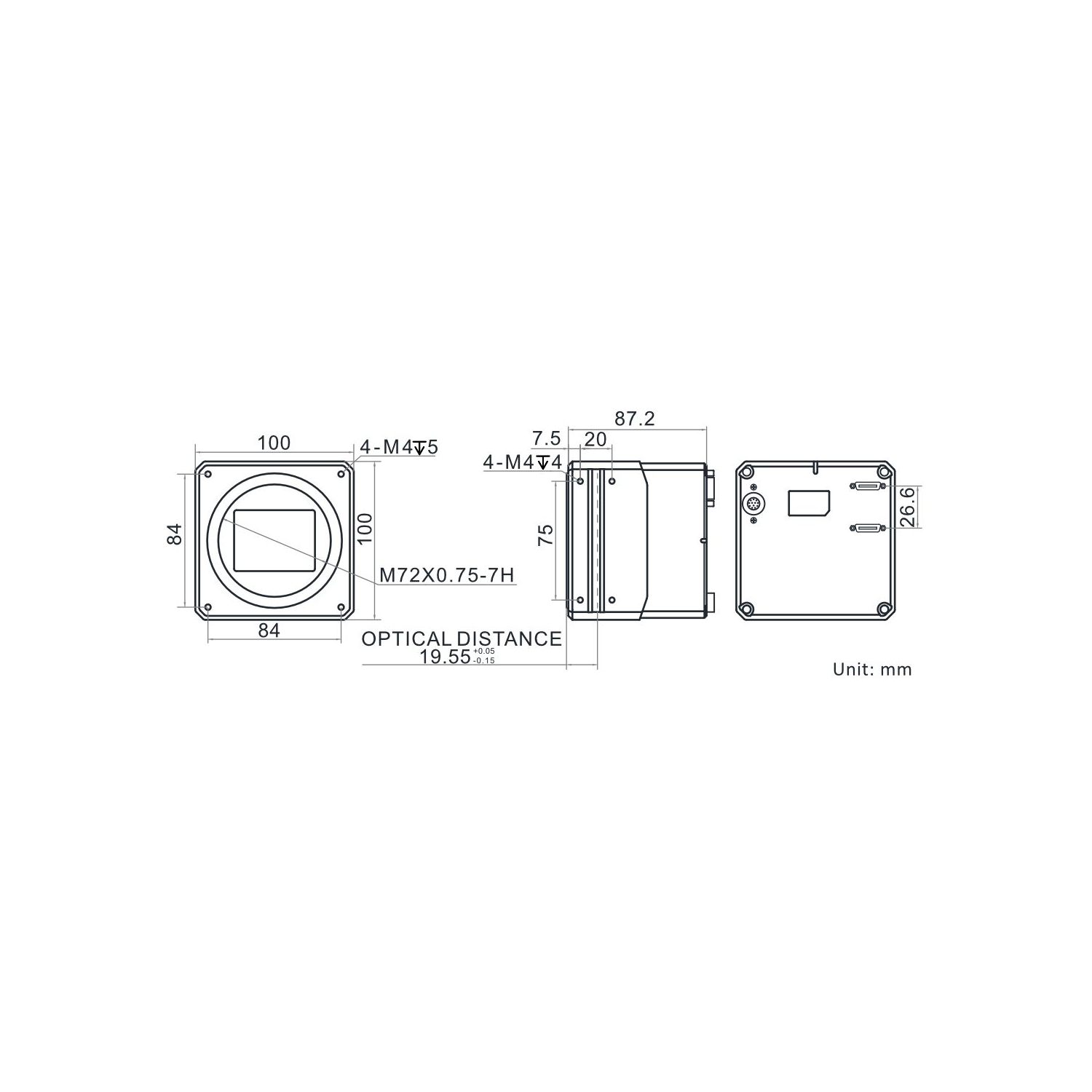

| Dimension | 90 mm × 90 mm × 71.5 mm (3.5″ × 3.5″ × 2.8″) | |
| Weight | Approx. 790 g (1.7 lb.) | |
| Ingress protection | IP40 (under proper lens installation and wiring) | |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) | |
| Humidity | 20% to 95% RH, non-condensing | |
| General | Client software | MVS or frame grabber software meeting with GenlCam Protocol |
| Operating system | 32/64-bit Windows XP/7/10 | |
| Compatibility | Camera Link V2.0, GenlCam | |
| Certification | CE, RoHS, KC |
