- Supports Binning, LSC Sequencer, FFC and other ISP functions.
- Adopts 10GigE over Fiber interface to transmit data, and max. transmission distance reaches 300 m.
- Adopts TEC technology to reduce sensor temperature and ensure high-quality images under long-time exposure condition.
- Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.

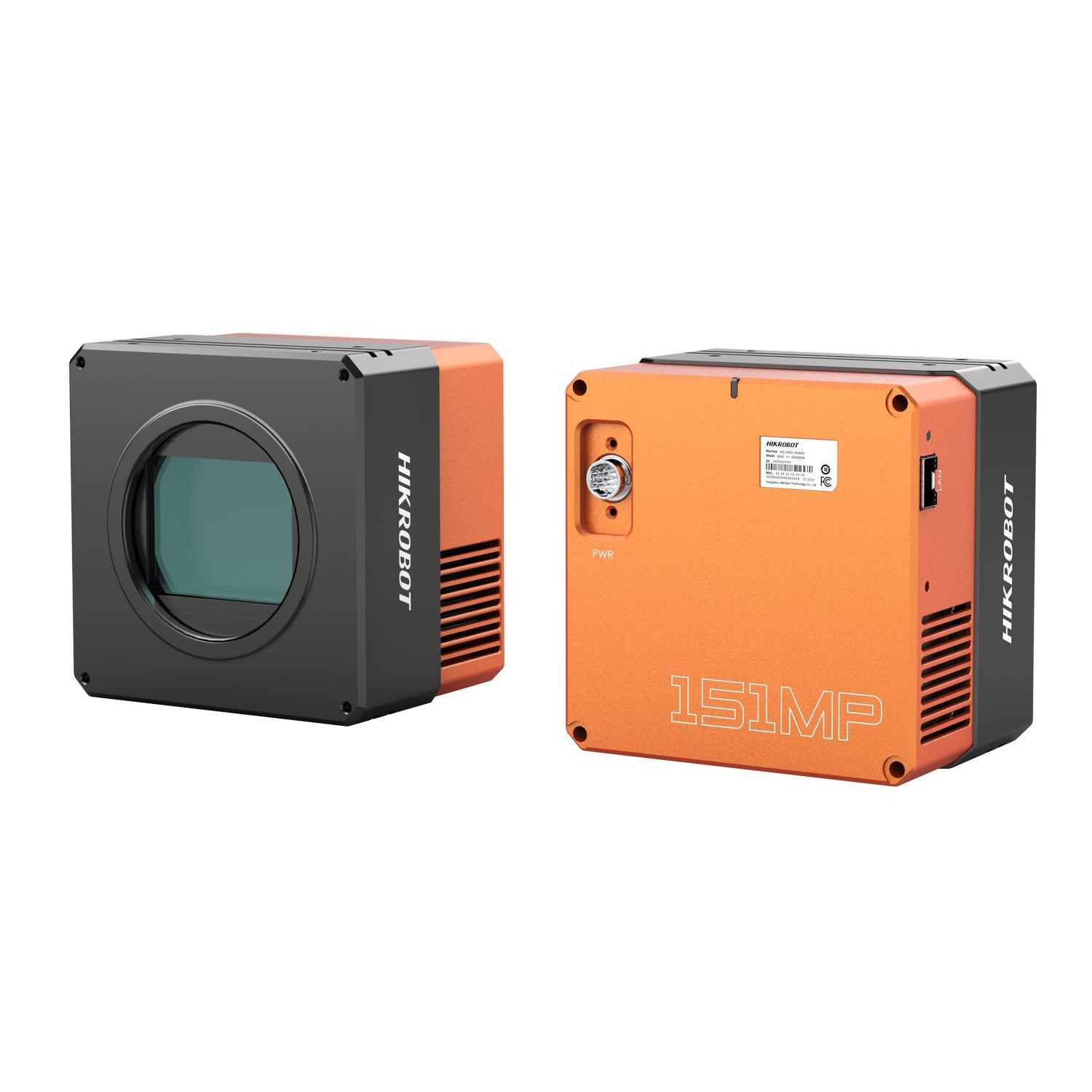

MV-CH1510-10FM-M72-TF
HIKROBOT Area Scan Camera CH Series
HIKROBOT Area Scan Camera CH Series
High-end product series designed for high-precision application and development in Panel, electronic semiconductor, new energy and other industries. which covers data interfaces of GigE, USB 3.0, 10 GigE, Camera Link, CoaXPress.
Covering 5M-151M pixels that can meet high resolution and high frame rate requirements. Equipped with fan or TEC cooling models to meet various imaging requirements. Years of accumulation of 100-level purification processes have also given the product a world-class delivery advantage.
Built-in ISP algorithms, including bright field correction, dark field correction, shadow correction, dead pixel/bad line correction, and pixel-by-pixel correction, to ensure consistent and stable image output.
Product Downloads:
| Model | Product Model | MV-CH1510-10FM-M72-TF |
| Type | 151MP Area Scan Camera, 10G BASE-X, IMX411 | |
| Performance | Sensor type | CMOS, rolling shutter |
| Sensor model | IMX411 | |
| Pixel size | 3.76 μm × 3.76 μm | |
| Sensor size | 66.7 mm | |
| Resolution | 14208 × 10640 | |
| Max. frame rate | 6.2 fps @14208 × 10640 | |
| Dynamic range | 78.7 dB | |
| SNR | 45 dB | |
| Gain | 0 dB to 36 dB | |
| Exposure time | 30 μs to 10 sec | |
| Exposure mode | Off/Once/Continuous exposure mode, supports Global Reset and Rolling mode | |
| Mono/color | Mono | |
| Pixel format | Mono 8/10/10p/12/12p/16 | |
| Binning | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 | |
| Decimation | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 | |
| Reverse image | Supports horizontal reverse image output | |
| Electrical feature | Data interface | 10GigE |
| Digital I/O | 12-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), RS-232 × 1 | |
| Power supply | 24 VDC | |
| Power consumption | Typ. 11.3 W@24 VDC (non-TEC mode)Typ. 49 W@24 VDC (TEC mode) | |
| Mechanical | Lens mount | M72*0.75, optical back focal length 19.55 mm (0.8″) |

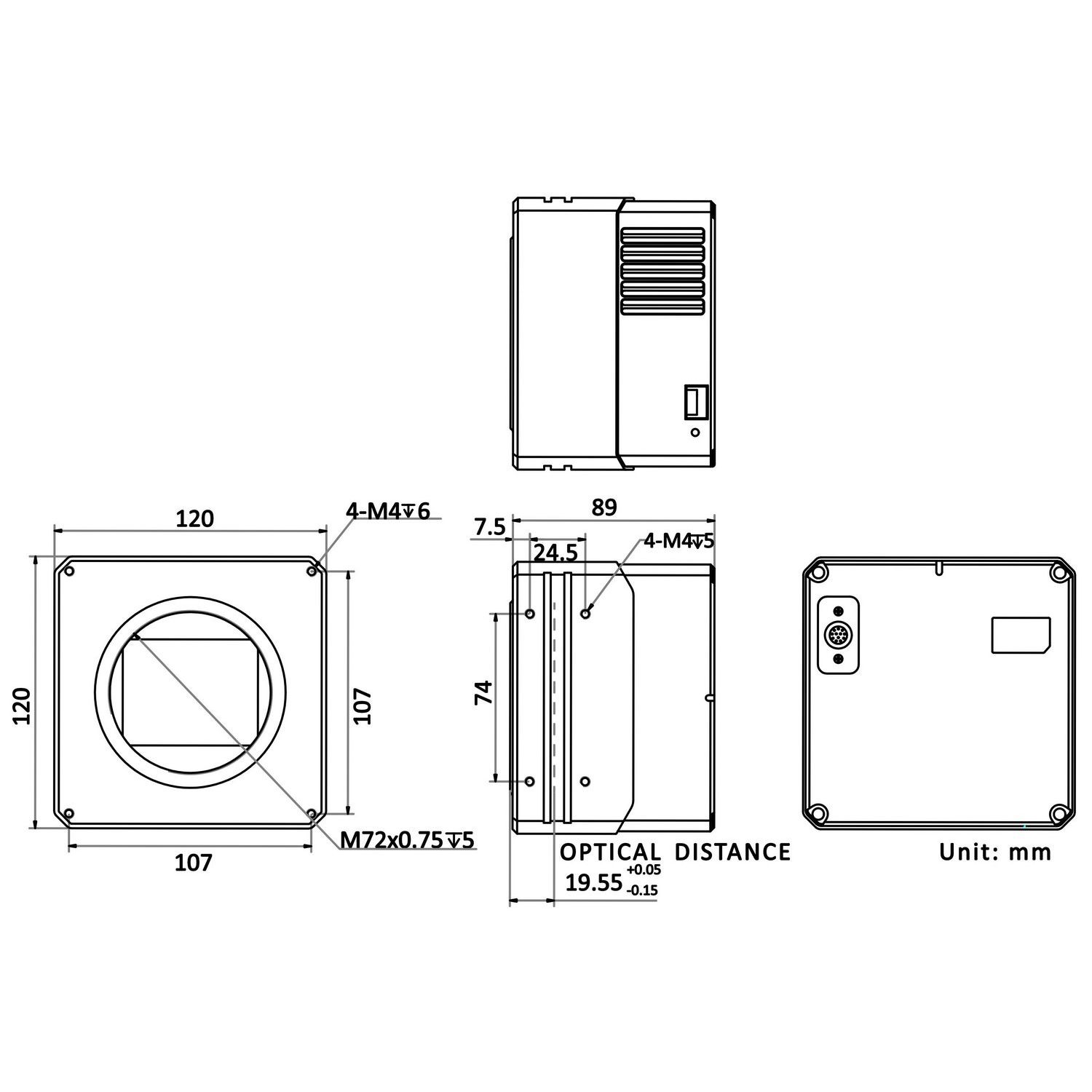

| Dimension | 120 mm × 120 mm × 89 mm (4.7″ × 4.7″ × 3.5″) | |
| Weight | Approx. 2.5 kg (5.5 lb.) | |
| Ingress protection | IP40 (under proper lens installation and wiring) | |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) | |
| Humidity | 20% to 95% RH, non-condensing | |
| General | Client software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating system | 32/64-bit Windows XP/7/10 | |
| Compatibility | GigE Vision V2.0, GenICam | |
| Certification | CE, RoHS, KC |
