- Resolution of 5328 × 4600, and pixel size of 2.74 μm × 2.74 μm.
- Supports auto or manual adjustment of gain, exposure time, and manual adjustment of Gamma correction, LUT, etc.
- Adopts 10 GigE interface, compatible with GigE, and max. transmission distance of 100 meters.
- Compact design with mounting holes on panels for flexible mounting.
- Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.

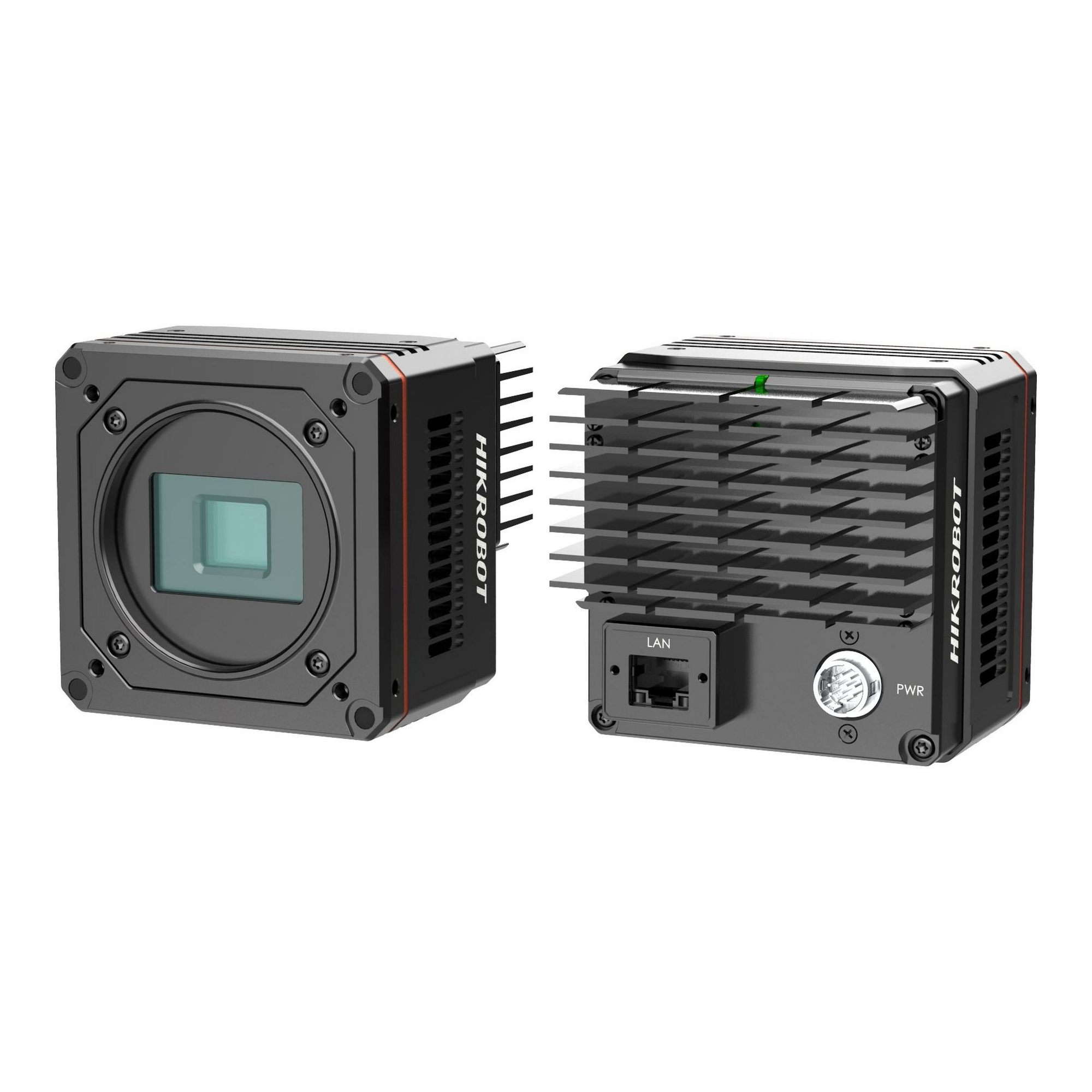

MV-CH240-10TM-C-NN
HIKROBOT Area Scan Camera CH Series
HIKROBOT Area Scan Camera CH Series
High-end product series designed for high-precision application and development in Panel, electronic semiconductor, new energy and other industries. which covers data interfaces of GigE, USB 3.0, 10 GigE, Camera Link, CoaXPress.
Covering 5M-151M pixels that can meet high resolution and high frame rate requirements. Equipped with fan or TEC cooling models to meet various imaging requirements. Years of accumulation of 100-level purification processes have also given the product a world-class delivery advantage.
Built-in ISP algorithms, including bright field correction, dark field correction, shadow correction, dead pixel/bad line correction, and pixel-by-pixel correction, to ensure consistent and stable image output.
Product Downloads:
| Model | Product Model | MV-CH240-10TM-C-NN |
| Type | 24MP Area Scan Camera, 10GigE, IMX530, Mono, C-mount, fanless | |
| Performance | Sensor type | CMOS, global shutter |
| Sensor model | IMX540 | |
| Pixel size | 2.74 μm × 2.74 μm | |
| Sensor size | 1.2" | |
| Resolution | 5328 × 4600 | |
| Max. frame rate | 35.1 fps @5328 × 4600 | |
| Dynamic range | 71 dB | |
| SNR | 40 dB | |
| Gain | 0 dB to 24 dB | |
| Exposure time | UltraShort exposure mode: 1 μs to 7 μsStandard exposure mode: 8 μs to 10 sec | |
| Exposure mode | Off/Once/Continuous exposure mode | |
| Mono/color | Mono | |
| Pixel format | Mono 8/10/10Packed/12/12Packed | |
| Binning | Supports 1 × 1, 2 × 2 | |
| Decimation | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 | |
| Reverse image | Supports horizontal and vertical reverse image output | |
| Electrical feature | Data interface | 10GigE |
| Digital I/O | 12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), RS-232 × 1 | |
| Power supply | 9 VDC to 24 VDC | |
| Power consumption | Typ. 10 W@12 VDC | |
| Mechanical | Lens mount | C-mount, flange back focal length: 17.52 mm (0.7") |

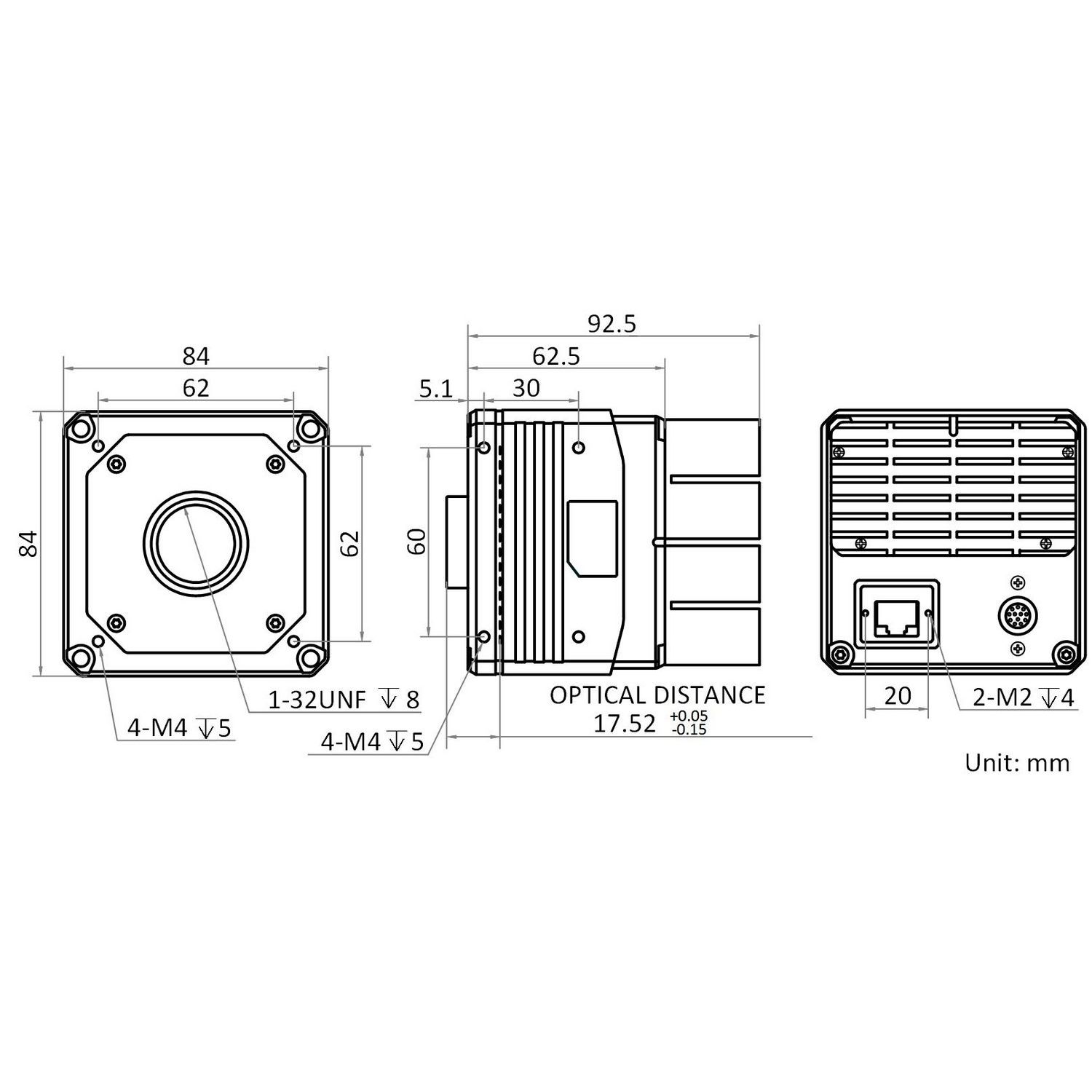

| Dimension | 84 mm × 84 mm × 62.5 mm (3.3" × 3.3" × 2.5") | |
| Weight | < 600 g (1.3 lb) | |
| Ingress protection | IP40 (under proper lens installation and wiring) | |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) | |
| Humidity | 20% to 95% RH, non-condensing | |
| General | Client software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating system | 32/64-bit Windows 7/10 | |
| Compatibility | GigE Vision V2.0, GenICam | |
| Certification | CE, RoHS, KC |
