- Ultra-high resolution and consistency of image clarity
- Large aperture, low distortion, low chromatic aberration and high relative illumination
- Maximum image circle Φ42mm, applicable to large format area scan and 4K 7μm line scan cameras

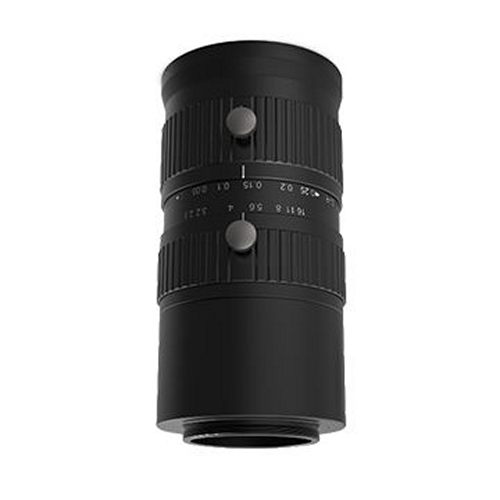

MVL-AF3528M-M42
HIKROBOT Lens, FA Series, AF
HIKROBOT Lens, FA Series, AF
Self-developed FA series lens especially for vision application characteristics, has the design concept of high performance and low cost. The product features high definition, better image center-edge definition consistency, and higher relative illumination to provide better choices.
The lens has high resolution and can support a minimum of 2.1μm pixels. It also has excellent image center and edge clarity consistency which can ensure excellent image quality.
Product Downloads:
| Model | Product Model | MVL-AF3528M-M42 |
| Type | 35mm, F2.8, Image Size φ42mm, Recommended Magnification 0.05~0.2X, M42-Mount | |
| Performance | Focal length | 35 mm |
| F-Number | F2.8 ~ F16 | |
| Image Size | Φ42 mm | |
| Optical Distortion | 0.40% | |
| Magnification Range | 0.2x ~ 0.001x | |
| Working Distance Range | 163 ~ inf mm | |
| Mechanical | Iris Control | Manual |
| Focus Control | Manual | |
| Filter Thread | M58 × 0.75 | |
| Mount | M42 × P1 | |
| Flange Back Length | 12 mm | |

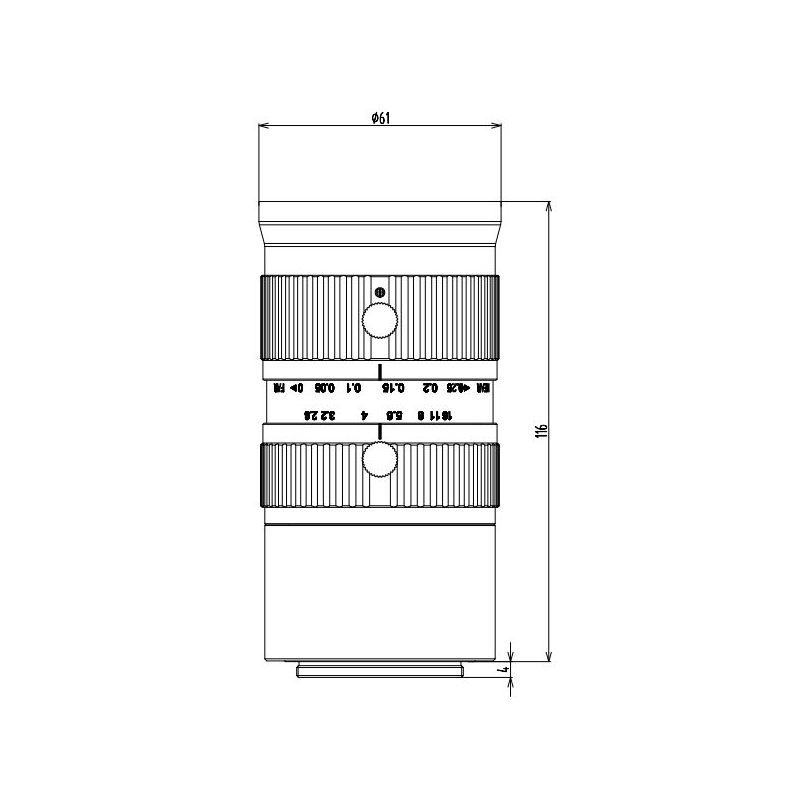

| Dimension | Φ61 × 116 mm | |
| Weight | 622 g | |
| Temperature | -10 ~ 50°C | |
| General | Certification | RoHS2.0 |
