- High resolution, high definition of the whole image
- Low distortion, high illumination relative
- Maximum image circle of 1.1″
- Support ultra-short working distance, maintaining excellent optical properties at different object distances

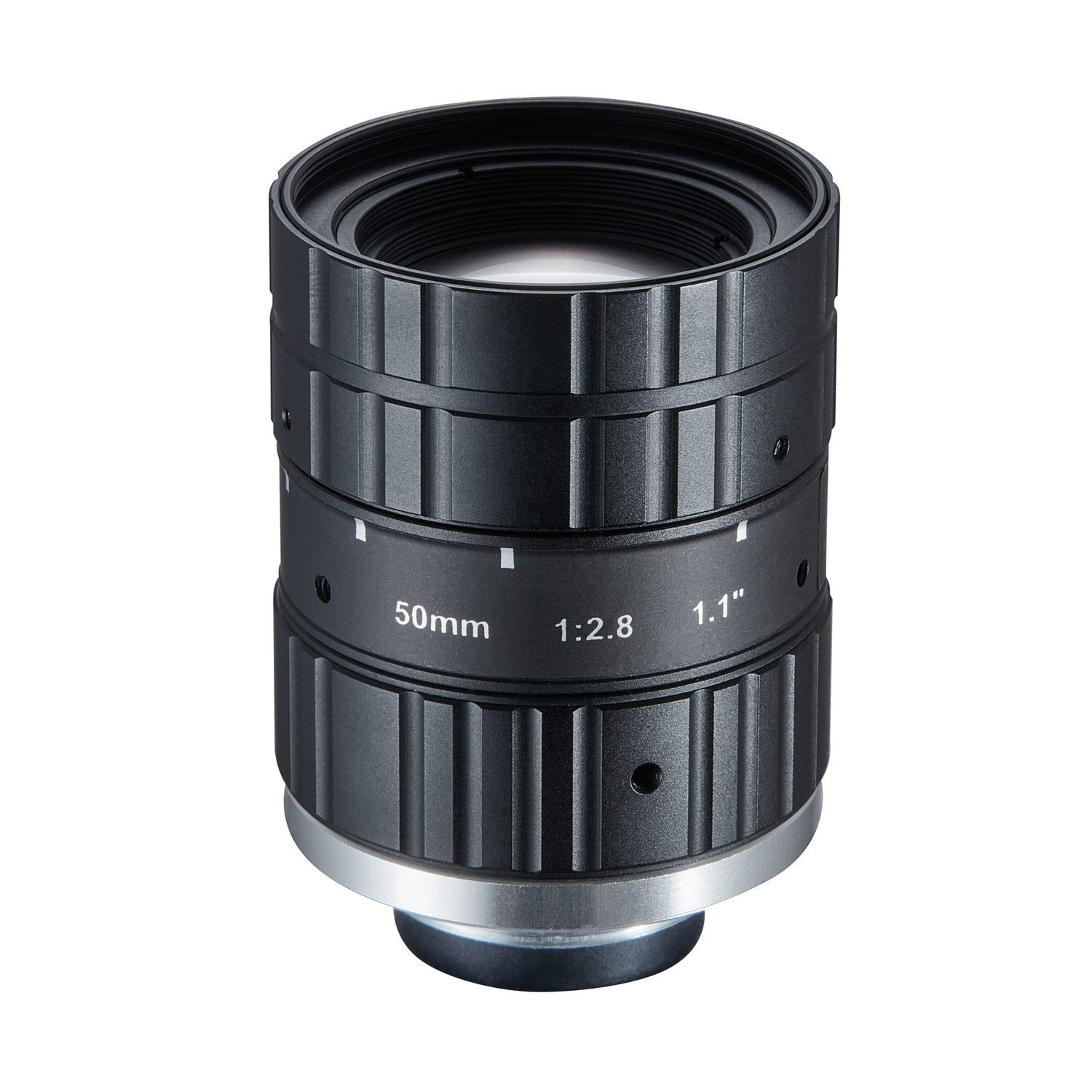

MVL-KF5028M-12MP
HIKROBOT Lens, FA Series, KF
HIKROBOT Lens, FA Series, KF
Self-developed FA series lens especially for vision application characteristics, has the design concept of high performance and low cost. The product features high definition, better image center-edge definition consistency, and higher relative illumination to provide better choices.
The lens has high resolution and can support a minimum of 2.1μm pixels. It also has excellent image center and edge clarity consistency which can ensure excellent image quality.
Product Downloads:
| Model | Product Model | MVL-KF5028M-12MP |
| Type | 50mm, F2.8, 1.1″, 12MP Lens, C-Mount | |
| Performance | Focal length | 50 mm |
| F-Number | F2.8 ~ F16 | |
| Image Size | Φ17.6 mm(1.1”) | |
| Optical Distortion | -0.05% | |
| Minimum Object Distance | 0.3 m | |
| Field of View | D（17.52mm）：18.9° H（14.14mm）：15.1° V（10.35mm）：11.2° | |
| Mechanical | Iris Control | Manual |
| Focus Control | Manual | |
| Filter Thread | M35.5 × 0.5 | |
| Mount | C-Mount | |
| Flange Back Length | 17.526 mm | |

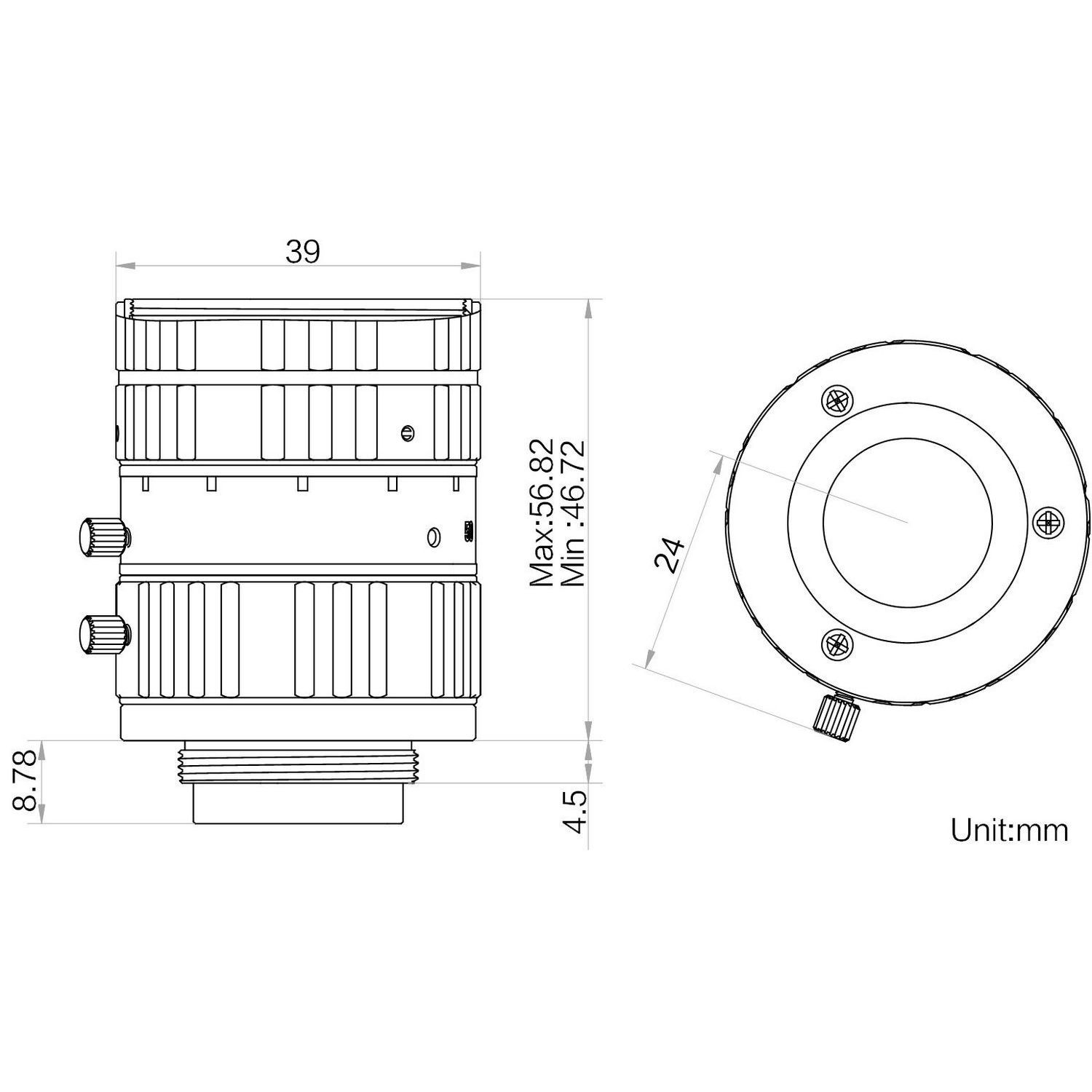

| Dimension | Φ39 × 56.82 mm | |
| Weight | 134 g | |
| Temperature | -10 ~ 50°C | |
| General | Certification | RoHS2.0 |
